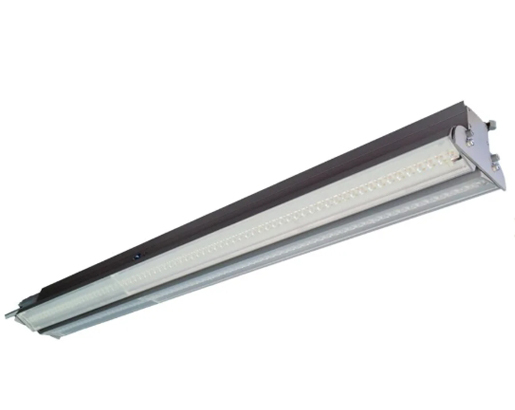

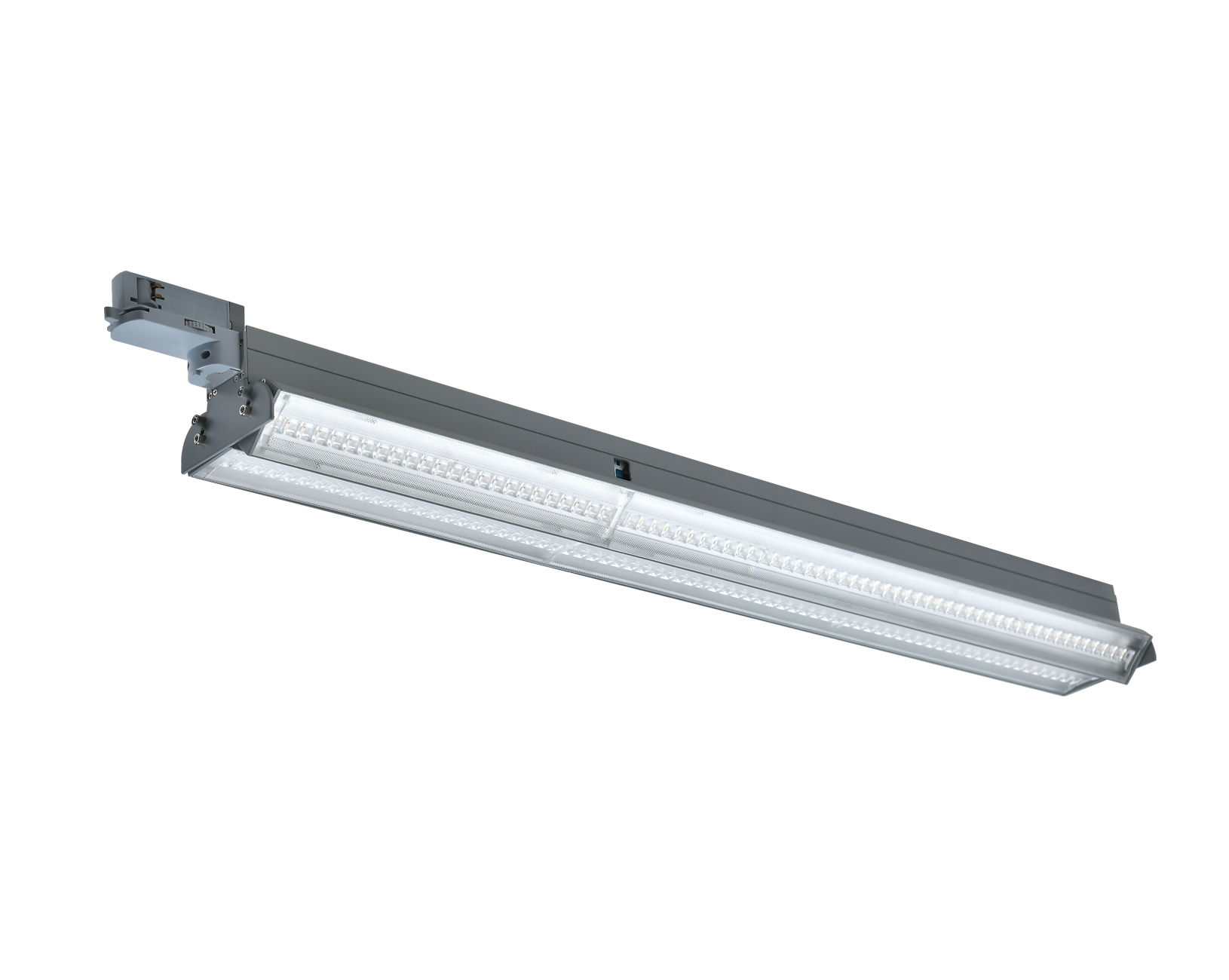

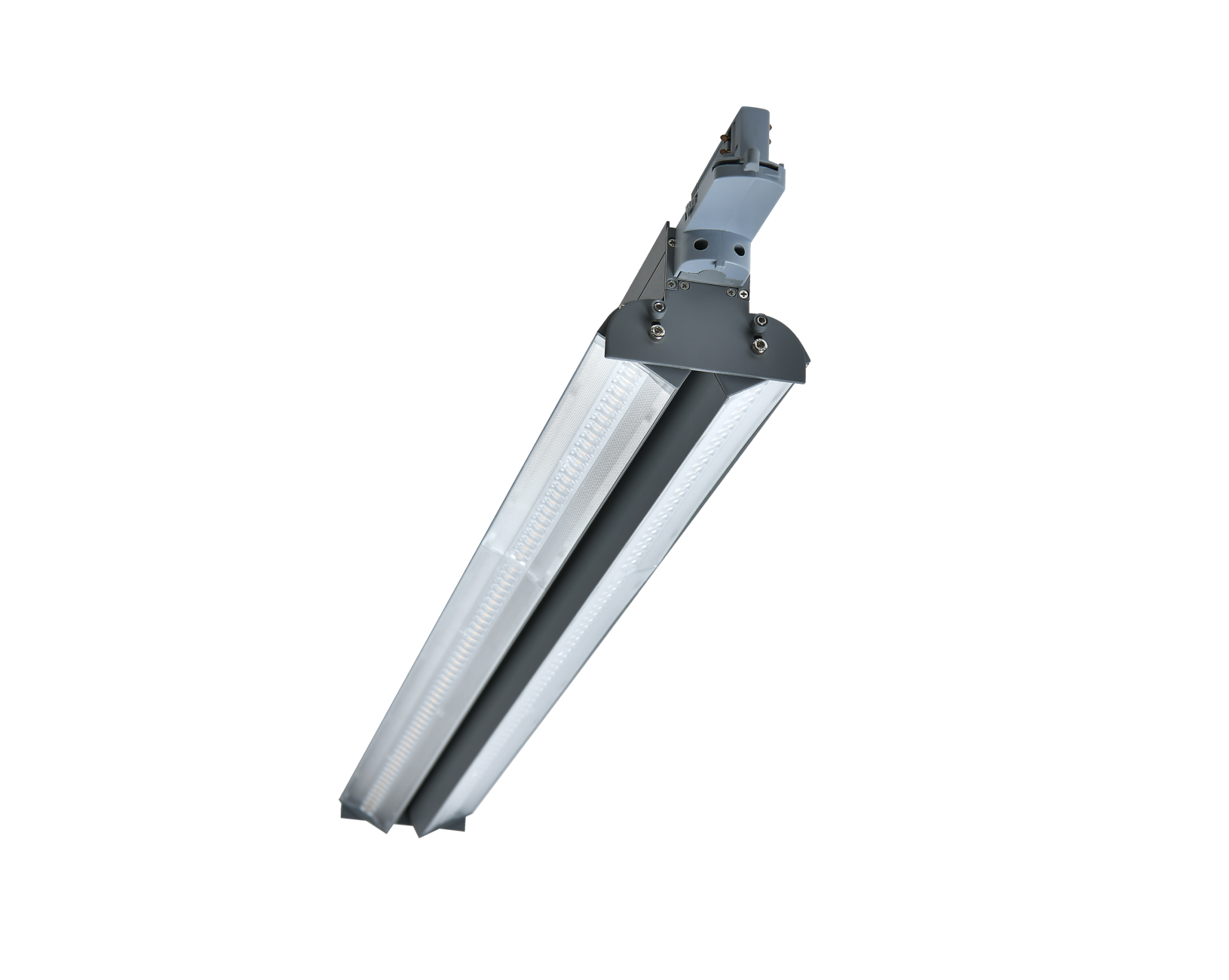

LED Track Linear Light - Adjustable

LC-LL1613-90W

The LL1613 adjustable track linear light is originally researched by Low-Carbon, reach to 150lm/W, 0-90°wide beaming adjustable. Equipped with high-quality Tridonic/Philips driver,each panel rotates independently(0-90°),and full body can rotate 350°,offering precise beam targeting without tools.Compatible with Global/Nordic 3 Phase Track, as well as 3 Phase DALI Track System.Smart LED IQ could change the CCT and watts(NFC,Casambi,0-10V,DALI2 etc).

Colors:

  •

Enquiry

Product Description:

Model No.: LC-LL1613-90W
Power: 2x45W
Light Source: 3030 SMD
Driver: Tridonic/Brand driver
Input Voltage: 220-240V AC 50/60Hz
Dimension: L930*W85*H95mm
CCT: 3000K, 4000K, 6000K
Luminous Flux: 13500lm
Housing Color: Black/white/Grey
CRI: Ra>80,Ra>90
Beam Angle: 90°
Track Type: 4 Wire (3Phase)
Operating Temperature: -40℃ - 50℃
L80 B80 Lifetime: Above 50000hs
Certification: CE, RoHS
Warranty: 5 Years

Applicable Scope:

  • Supermarkets
  • Clothing stores
  • Warehouse
  • Libraries
  • Aisles
  • Shelves lighting

Features:

  1. Adjustable from 0°vertical to 90°level direction, Quick installation as 3-5 seconds .
  2. High efficiency of the total lamp, reach to 150lm/W above, and the UGR below 19.
  3. Eight different lens options: Narrow 30°,High Rack 60°, Standard 90°,Diffuse 120°,Wide 60°,Extra Wide 90°,Asymmetric and Symmetric.
  4. Original Tridonic and brand driver with brilliant quality, 0-10V,DALI ,casambi,NFC,DIP Dimmable available.
  5. Various lengths, wattages and beam angles provide a full range of lumen output options, to meet the diversity in users' requirements.

Download:

 LL1613 Datasheet
